Balancing Instrumentation and Balancing Machine Upgrades

Do you have an old balancing machine with a faulty instrumentation? Want to repair or revive your old balancing machine? Or a special balancing requirement unsuited for standard balancing machines? Precibalance has the solution for you.

Retrofit, repair, upgrade or modernize your existing balancing machine with Precibalance Instrumentation. Quickly add balancing functionality to your special purpose machines. Improve product quality and productivity with specialty balancing applications such as assembly balancing. Or, use the balancing instrumentation in turn-key projects and custom balancing rigs. The versatile Precibalance balancing instrumentation provides a precise balancing solution for your balancing application.

Precibalance balancing machine instrumentation is designed in a modular fashion to accommodate a wide variety of sensors. Whether it is a hard bearing balancing machine or a soft bearing balancing machine, vertical balancing machine, horizontal balancing machine, most types of machines can be modernized to a computerized balancing machine with Precibalance balancing instrumentation.

Description

A balancing instrumentation consists of vibration sensors, RPM sensors, rotary encoders and the signal processing electronics and software to convert the raw sensor data to a readable unbalance result. The purpose of the balancing machine instrumentation is to extract the unbalance signal from a multitude of noise sources such as other rotating elements of the machine, electrical noises in an industrial environment etc.

The excellent unbalance signal extraction capability of Precibalance balancing instrumentation ensures accurate unbalance measurement and ease of unbalance correction. The balancing system is designed to make the process of balancing intuitive, quick and effective. The frontier generation balancing instrumentation from Precibalance, Precibalance-FG is the next iteration of unbalance measurement technologies spanning analog, mixed signal, digital instrumentations, culminating with mathematical unbalance measurement technology of Precibalance-FG. Precibalance balancing instrumentation delivers fast, stable, precise and accurate unbalance measurements eliminating common problems of measurement instrumentation such as electronic drift, need for calibration adjustment etc.

Scope of supply

A Precibalance Balancing Instrumentation kit normally comes with the following

  • Precibalance Balancing Electronics
  • Force / Acceleration sensors. Specify while ordering if you would like to upgrade a hard bearing balancing machine or a soft bearing balancing machine. Normally, we supply force sensors for hard bearing balancing machines and ICP compatible accelerometers for soft bearing balancing machines.
  • RPM sensor.
  • Rotary encoder
  • Balancing software
  • Power supply and inter connecting cables

The balancing machine instrumentation kit is compatible with PC running Windows 7,8 or 10. A USB port is required for communication with the electronics.

Instrumentation Features

  • Auto ranging and auto scaling function standard to automatically improve measurement.
  • Advanced balancing machine instrumentation makes your balancing simple, quick and effective.
  • Designed for high performance and high reliability.
  • High precision two channel signal conditioner with digital phase lock loop, zero phase shift and zero bandwidth filtering gives precise measurements of unbalance weight and angle.
  • Digital watt meter technology provides superior noise suppression.
  • Next generation mathematical unbalance measurement technology with performance surpassing analog, digital or mixed signal instrumentations. Instrumentation electronic drift eliminated. Need to frequently calibrate instrumentation totally eliminated.
  • Wide range of unbalance handled without adjustments.
  • Wide range of balancing speeds seamlessly handled.
  • Remote angle function standard for simple and quick unbalance correction.
  • Automatic calibration function – Quick and easy to set-up and use. The automatic calibration ensures your upgraded machine is calibrated quickly and precisely.
  • Interfaces with standard x86/x64 Windows 7/8/10 based PCs through USB. Blue-tooth optional for interfacing with tablets, stick PCs etc.
  • Works with 90-260 Volts AC 50/60 Hz.
  • Speed seamlessly variable from 120 – 4000 RPM. Other speeds available on request.
  • Supports most PNP output RPM sensors such as laser, IR etc.
  • Supports rotary encoders of 5V differential line drive output with arbitrary PPR.
  • Hard bearing and soft bearing available.(Choose while ordering).
  • The balancing instrumentation along with the site balancing software can also be used as a on-site balancing system.
  • Accurate and precise measurements in optimum time. Precise yet fast measurements improve productivity. Measurement time as low as 2 seconds optionally available for special applications.
  • Also use as turn-key measurement system for special purpose or custom balancer.
  • Your company logo in Print report.

Turnkey Instrumentation

  • Complete balancing instrumentation and software for your special purpose balancing machine.
  • Can be used for building custom balance testing rigs for applications such as:
    • Balancing components in their own bearings.
    • Balancing component running under their own power.

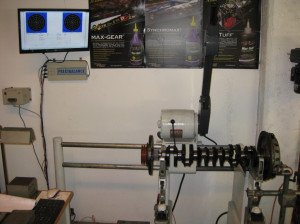

Balancing Machine Upgrade

Upgraded ABRO Balancing Machine
Upgraded ABRO Balancing Machine

ABRO Balancing machine upgraded with Precibalance instrumentation kit. The existing electricals and mechanical parts of the ABRO vertical balancing machine is used, replacing the measurement system with Precibalance instrumentation.

ABRO Balancing machine upgraded with Precibalance instrumentation kit. The existing electricals and mechanical parts of the ABRO vertical balancing machine is used, replacing the measurement system with Precibalance instrumentation.

ABRO Balancing machine upgraded with Precibalance instrumentation kit. The existing electricals and mechanical parts of the ABRO vertical balancing machine is used, replacing the measurement system with Precibalance instrumentation.

Upgraded Vertical Balancing Machine
Upgraded Vertical Balancing Machine

An FIE make vertical balancing machine upgraded with Precibalance Instrumentation. The machine was modified to incorporate a rotary encoder in addition to the force sensors and new instrumentation. The addition of the rotary encoder reduces the error from the heavy angle disc and provides an on screen remote angle protractor function. In conjunction with the… Read More »Upgraded Vertical Balancing Machine

An FIE make vertical balancing machine upgraded with Precibalance Instrumentation. The machine was modified to incorporate a rotary encoder in addition to the force sensors and new instrumentation. The addition of the rotary encoder reduces the error from the heavy angle disc and provides an on screen remote angle protractor function. In conjunction with the… Read More »Upgraded Vertical Balancing Machine

An FIE make vertical balancing machine upgraded with Precibalance Instrumentation. The machine was modified to incorporate a rotary encoder in addition to the force sensors and new instrumentation. The addition of the rotary encoder reduces the error from the heavy angle disc and provides an on screen remote angle protractor function. In conjunction with the… Read More »Upgraded Vertical Balancing Machine

Upgraded Schenck Soft Bearing Balancing Machine
Upgraded Schenck Soft Bearing Balancing Machine

Soft bearing Schenck upgrade. Click to Play A Schenck Soft Bearing Outer rotor fan balancing machine upgraded with Precibalance electronics. The machine is retained as a soft bearing machine through the use of accelerometer sensors. Modern powerful PCs along with Precibalance software enables permanent storage and retrieval of calibration parameters, enabling a soft bearing machine… Read More »Upgraded Schenck Soft Bearing Balancing Machine

Soft bearing Schenck upgrade. Click to Play A Schenck Soft Bearing Outer rotor fan balancing machine upgraded with Precibalance electronics. The machine is retained as a soft bearing machine through the use of accelerometer sensors. Modern powerful PCs along with Precibalance software enables permanent storage and retrieval of calibration parameters, enabling a soft bearing machine… Read More »Upgraded Schenck Soft Bearing Balancing Machine

Soft bearing Schenck upgrade. Click to Play A Schenck Soft Bearing Outer rotor fan balancing machine upgraded with Precibalance electronics. The machine is retained as a soft bearing machine through the use of accelerometer sensors. Modern powerful PCs along with Precibalance software enables permanent storage and retrieval of calibration parameters, enabling a soft bearing machine… Read More »Upgraded Schenck Soft Bearing Balancing Machine

Upgraded Schenck Balancing Machine – Vertical Balancing Machine – Aero Engine Application
Upgraded Schenck Balancing Machine – Vertical Balancing Machine – Aero Engine Application

Schenck Vertical Balancing Machine upgraded with Precibalance Balancing Machine Instrumentation kit for Aero Engine application. The existing mechanical setup, tooling and electricals were used with the Precibalance measurement system. Close up of the component balanced on the upgraded balancing machine

Schenck Vertical Balancing Machine upgraded with Precibalance Balancing Machine Instrumentation kit for Aero Engine application. The existing mechanical setup, tooling and electricals were used with the Precibalance measurement system. Close up of the component balanced on the upgraded balancing machine

Schenck Vertical Balancing Machine upgraded with Precibalance Balancing Machine Instrumentation kit for Aero Engine application. The existing mechanical setup, tooling and electricals were used with the Precibalance measurement system. Close up of the component balanced on the upgraded balancing machine

Upgraded Schenck Balancing Machine – Cast Aluminium Fan
Upgraded Schenck Balancing Machine – Cast Aluminium Fan

A cast aluminium fan being balanced on an upgraded schenck horizontal balancing machine

A cast aluminium fan being balanced on an upgraded schenck horizontal balancing machine

A cast aluminium fan being balanced on an upgraded schenck horizontal balancing machine

PlayPause
previous arrow
next arrow
Upgraded ABRO Balancing Machine
Upgraded Vertical Balancing Machine
Upgraded Schenck Soft Bearing Balancing Machine
Upgraded Schenck Balancing Machine – Vertical Balancing Machine – Aero Engine Application
Upgraded Schenck Balancing Machine – Cast Aluminium Fan
previous arrow
next arrow

The Precibalance balancing instrumentation is designed with flexibility and ease of use. The modular design of the hardware and software enable the Precibalance balancing instrumentation to be fitted on other make balancing machines quickly with little effort.

  • Retrofit and upgrade your old balancing machine with a modern computerized unbalance measurement balancing instrumentation.
  • Simple to install and use. The upgrade can be typically done within a few hours with minor mechanical work.
  • Revive electrically and mechanically functional balancing machines with faulty electronics by replacing the old electronics with a Precibalance balancing electronics.
  • Works with almost any make of balancing machines: upgrade hard bearing balancing machine, soft bearing balancing machine, vertical balancing machine, horizontal balancing machine at most load capacities and speeds.
  • Works with different types of sensors such as piezo electric force sensors, ICP accelerometers.
  • Instant improvement in operator productivity and balancing quality.
  • Available for hard bearing or soft bearing.
  • Multi speed capable instrumentation. Works with single speed, two speed or variable speed balancers.
  • Standard package includes instrumentation, sensors, software required for the upgrade.

Instrumentation for Hard Bearing Balancing Machine

  • Suitable for rigid balancing machines where supports do not move.
  • Permanently calibrated.
  • 2 plane program supports all 6 rotor configurations and static couple separation.
  • Supplied with hermetically sealed piezo force sensors.
  • Calibration valid across all speed ranges.

Instrumentation for Soft Bearing Balancing Machine

Upgraded Schenck Soft Bearing Horizontal Balancing Machine
Upgraded Schenck Soft Bearing Horizontal Balancing Machine

A schenck soft bearing balancing machine upgraded with Precibalance instrumentation kit.

A schenck soft bearing balancing machine upgraded with Precibalance instrumentation kit.

A schenck soft bearing balancing machine upgraded with Precibalance instrumentation kit.

Upgraded Schenck Balancing Machine – Soft Bearing
Upgraded Schenck Balancing Machine – Soft Bearing

A decades old Schenck make soft bearing balancing machine modernized and computerized with Precibalance balancing instrumentation. The retro-fitment can be done in a few hours with minor mechanical rework. The soft bearing machine was retained as a soft bearing machine by utilizing the accelerometer sensors. Encoders were added to provide remote angle function. The balancing… Read More »Upgraded Schenck Balancing Machine – Soft Bearing

A decades old Schenck make soft bearing balancing machine modernized and computerized with Precibalance balancing instrumentation. The retro-fitment can be done in a few hours with minor mechanical rework. The soft bearing machine was retained as a soft bearing machine by utilizing the accelerometer sensors. Encoders were added to provide remote angle function. The balancing… Read More »Upgraded Schenck Balancing Machine – Soft Bearing

A decades old Schenck make soft bearing balancing machine modernized and computerized with Precibalance balancing instrumentation. The retro-fitment can be done in a few hours with minor mechanical rework. The soft bearing machine was retained as a soft bearing machine by utilizing the accelerometer sensors. Encoders were added to provide remote angle function. The balancing… Read More »Upgraded Schenck Balancing Machine – Soft Bearing

Upgraded Schenck Balancing Machine – Marine Propeller
Upgraded Schenck Balancing Machine – Marine Propeller

A marine propeller being balanced on a upgraded schenck balancing machine Side view of the upgraded balancing machine

A marine propeller being balanced on a upgraded schenck balancing machine Side view of the upgraded balancing machine

A marine propeller being balanced on a upgraded schenck balancing machine Side view of the upgraded balancing machine

Upgraded Schenck Soft Bearing Balancing Machine
Upgraded Schenck Soft Bearing Balancing Machine

Soft bearing Schenck upgrade. Click to Play A Schenck Soft Bearing Outer rotor fan balancing machine upgraded with Precibalance electronics. The machine is retained as a soft bearing machine through the use of accelerometer sensors. Modern powerful PCs along with Precibalance software enables permanent storage and retrieval of calibration parameters, enabling a soft bearing machine… Read More »Upgraded Schenck Soft Bearing Balancing Machine

Soft bearing Schenck upgrade. Click to Play A Schenck Soft Bearing Outer rotor fan balancing machine upgraded with Precibalance electronics. The machine is retained as a soft bearing machine through the use of accelerometer sensors. Modern powerful PCs along with Precibalance software enables permanent storage and retrieval of calibration parameters, enabling a soft bearing machine… Read More »Upgraded Schenck Soft Bearing Balancing Machine

Soft bearing Schenck upgrade. Click to Play A Schenck Soft Bearing Outer rotor fan balancing machine upgraded with Precibalance electronics. The machine is retained as a soft bearing machine through the use of accelerometer sensors. Modern powerful PCs along with Precibalance software enables permanent storage and retrieval of calibration parameters, enabling a soft bearing machine… Read More »Upgraded Schenck Soft Bearing Balancing Machine

Upgrade – Soft bearing to hard bearing conversion
Upgrade – Soft bearing to hard bearing conversion

Soft bearing balancing Machines can be converted to hard bearing balancing machines by replacing the weak supports with rigid supports, without disturbing the alignment. The view shows the support plates replaced on a soft bearing machine to convert it into a hard bearing system. The Precibalance instrumentation kit supports both hard bearing as well as… Read More »Upgrade – Soft bearing to hard bearing conversion

Soft bearing balancing Machines can be converted to hard bearing balancing machines by replacing the weak supports with rigid supports, without disturbing the alignment. The view shows the support plates replaced on a soft bearing machine to convert it into a hard bearing system. The Precibalance instrumentation kit supports both hard bearing as well as… Read More »Upgrade – Soft bearing to hard bearing conversion

Soft bearing balancing Machines can be converted to hard bearing balancing machines by replacing the weak supports with rigid supports, without disturbing the alignment. The view shows the support plates replaced on a soft bearing machine to convert it into a hard bearing system. The Precibalance instrumentation kit supports both hard bearing as well as… Read More »Upgrade – Soft bearing to hard bearing conversion

PlayPause
previous arrow
next arrow
Upgraded Schenck Soft Bearing Horizontal Balancing Machine
Upgraded Schenck Balancing Machine – Soft Bearing
Upgraded Schenck Balancing Machine – Marine Propeller
Upgraded Schenck Soft Bearing Balancing Machine
Upgrade – Soft bearing to hard bearing conversion
previous arrow
next arrow
  • Suitable for balancing machines with suspended moving supports.
  • Rotor specific calibration. Calibration is stored. Recalibration not required if same component is measured again in same condition.
  • Supplied with IEPE compatible accelerometer standard.
