Assembly Balancing Machine

Assembly Balancing Machine – Features

  • Assembly balancing machines are available for balancing components in the assembled condition on its own bearings. An assembly balancing process mitigates errors due to assembly since the unbalance is measured and compensated for the whole assembled part in a single step.
  • Ability to balance components at the service speed.
  • Ability to balance components under it’s own power.
  • Modular design of sensing and component mounting mechanisms and the simple calibration function of the instrumentation and software enables handling multiple types of components and quick changeover of components by selecting and mounting appropriate fixtures and rotor set-ups

Tooling for a radiator fan assembly balancing machine

Another tooling for another radiator fan using same pedestal supports.

  • Option of dynamic reference requiring no external reference for some types of applications. The dynamic reference design also provides an electronic protractor remote angle system enables easy identification of the unbalance at the closest proximity to a correction location.
  • Hard bearing balancing machine using piezo electric force sensors or soft bearing balancing machine using acceleration sensor designs available.
  • Applications for assembly balancing include:
    • Motor pulley assembly for machine tool applications
    • TFO textile spindle balancing balanced in its own bearing for very high accuracy.
    • Motor fan balancing for instrument cooling.
    • Automotive cooling/ radiator fan balancing.
    • and many others.
  • Special purpose assembly balancing machines are also available for components such as:
    • Outer rotor motor fan assembly.
    • Wind turbine blade assembly.
    • and many others.
  • We design and supply balancing machines for your assemblies and can also supply instrumentation to enable balancing on your existing test rigs. Please contact us with your requirements. We will be happy to assist you.
Radiator Fan Assembly Balancing Machine
Radiator Fan Assembly Balancing Machine

Assembly Balancing Machine for Automotive Radiator Fan Motor Assembly.

Assembly Balancing Machine for Automotive Radiator Fan Motor Assembly.

Assembly Balancing Machine for Automotive Radiator Fan Motor Assembly.

AC Blower Fan Balancing Machine – Assembly Balancing Machine
AC Blower Fan Balancing Machine – Assembly Balancing Machine

Balancing machine for AC Blower fan motor assembly. Fan motor assemblies for air conditioning blowers are balanced under it’s own power. The assembly balancing enabled by the excellent unbalance extraction capabilities of the Precibalance balancing electronics eliminates errors occurring from re-assembly after balancing individual components.

Balancing machine for AC Blower fan motor assembly. Fan motor assemblies for air conditioning blowers are balanced under it’s own power. The assembly balancing enabled by the excellent unbalance extraction capabilities of the Precibalance balancing electronics eliminates errors occurring from re-assembly after balancing individual components.

Balancing machine for AC Blower fan motor assembly. Fan motor assemblies for air conditioning blowers are balanced under it’s own power. The assembly balancing enabled by the excellent unbalance extraction capabilities of the Precibalance balancing electronics eliminates errors occurring from re-assembly after balancing individual components.

Cieling Fan Assembly Balancing Machine
Cieling Fan Assembly Balancing Machine

A ceiling fan hub, blade and BLDC motor assembly being balanced on a Precibalance assembly balancing machine. The ceiling fans are balanced to improve the noise and vibration level and deliver a better comfort quality to the occupants. The auto-calibration function along with the precise unbalance signal extraction enables accurate and quick balancing of the… Read More »Cieling Fan Assembly Balancing Machine

A ceiling fan hub, blade and BLDC motor assembly being balanced on a Precibalance assembly balancing machine. The ceiling fans are balanced to improve the noise and vibration level and deliver a better comfort quality to the occupants. The auto-calibration function along with the precise unbalance signal extraction enables accurate and quick balancing of the… Read More »Cieling Fan Assembly Balancing Machine

A ceiling fan hub, blade and BLDC motor assembly being balanced on a Precibalance assembly balancing machine. The ceiling fans are balanced to improve the noise and vibration level and deliver a better comfort quality to the occupants. The auto-calibration function along with the precise unbalance signal extraction enables accurate and quick balancing of the… Read More »Cieling Fan Assembly Balancing Machine

Dual Fan Radiator Fan Balancing Machine
Dual Fan Radiator Fan Balancing Machine

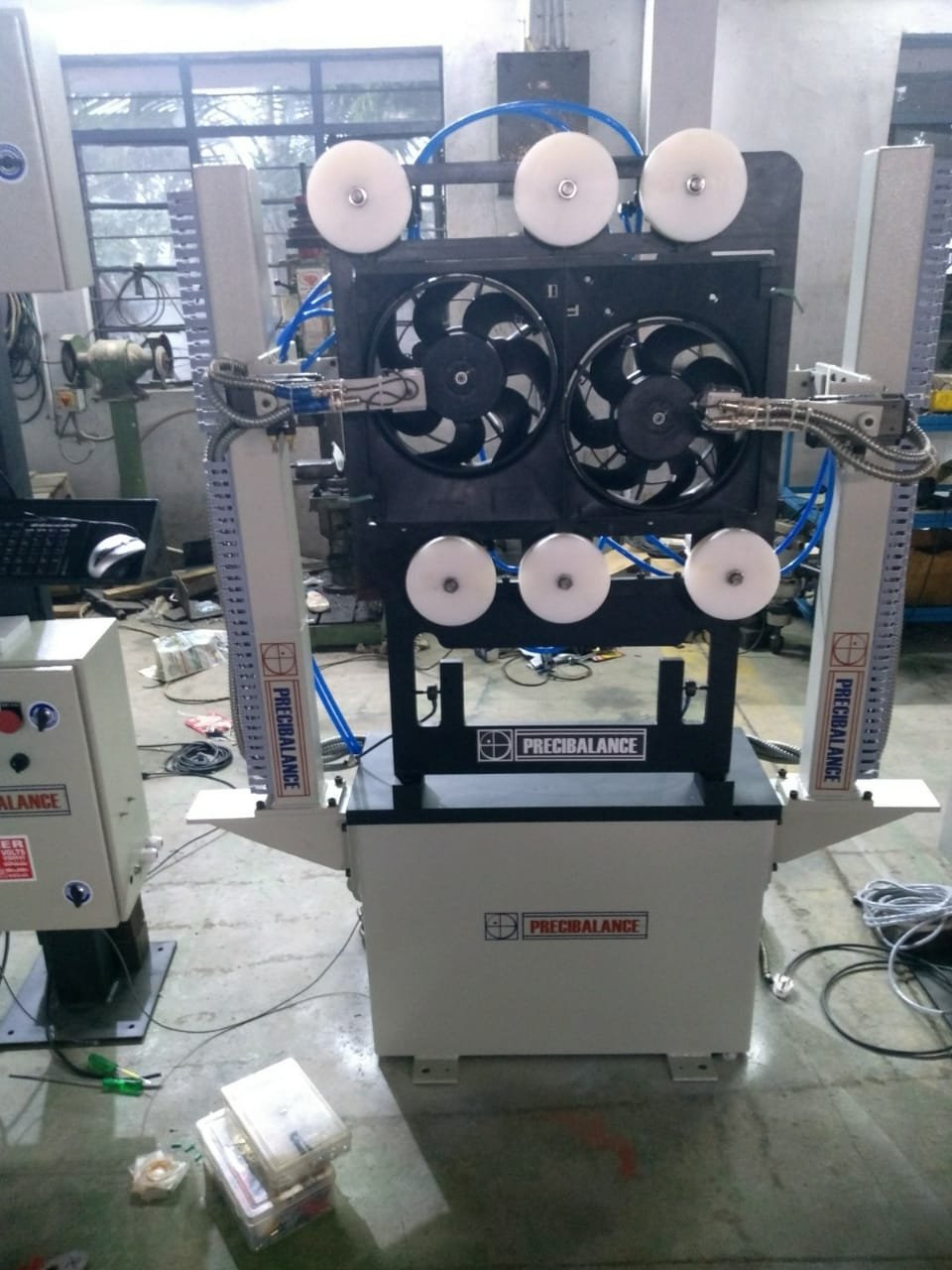

A twin fan radiator / dual fan radiator being balanced on a Precibalance assembly balancing machine. The high unbalance signal extraction capability of Precibalance balancing machines enable both the fans to be balanced simultaneously. The machine is also equipped with a dynamic reference detection feature, eliminating the step of adding RPM sensor reflective stickers saving… Read More »Dual Fan Radiator Fan Balancing Machine

A twin fan radiator / dual fan radiator being balanced on a Precibalance assembly balancing machine. The high unbalance signal extraction capability of Precibalance balancing machines enable both the fans to be balanced simultaneously. The machine is also equipped with a dynamic reference detection feature, eliminating the step of adding RPM sensor reflective stickers saving… Read More »Dual Fan Radiator Fan Balancing Machine

A twin fan radiator / dual fan radiator being balanced on a Precibalance assembly balancing machine. The high unbalance signal extraction capability of Precibalance balancing machines enable both the fans to be balanced simultaneously. The machine is also equipped with a dynamic reference detection feature, eliminating the step of adding RPM sensor reflective stickers saving… Read More »Dual Fan Radiator Fan Balancing Machine

Automobile Radiator Fan Balancing Machine – Reflective Stickerless Dynamic Reference design
Automobile Radiator Fan Balancing Machine – Reflective Stickerless Dynamic Reference design

A radiator fan balancing machine with dynamic reference design. The dynamic reference design enables balancing of radiator fans without the need for any reflective sticker. The dynamic reference design also provides an electronic protractor remote angle system enables easy identification of the unbalance at the closest proximity to a correction blade. The placeweights program also… Read More »Automobile Radiator Fan Balancing Machine – Reflective Stickerless Dynamic Reference design

A radiator fan balancing machine with dynamic reference design. The dynamic reference design enables balancing of radiator fans without the need for any reflective sticker. The dynamic reference design also provides an electronic protractor remote angle system enables easy identification of the unbalance at the closest proximity to a correction blade. The placeweights program also… Read More »Automobile Radiator Fan Balancing Machine – Reflective Stickerless Dynamic Reference design

A radiator fan balancing machine with dynamic reference design. The dynamic reference design enables balancing of radiator fans without the need for any reflective sticker. The dynamic reference design also provides an electronic protractor remote angle system enables easy identification of the unbalance at the closest proximity to a correction blade. The placeweights program also… Read More »Automobile Radiator Fan Balancing Machine – Reflective Stickerless Dynamic Reference design
